900~2500nm wavelength 600μm fiber mechanical optical switch

I. Overview

This 600μm fiber/wavelength range (900-2500nm) mechanical optical switch is a device for optical path switching in the near-infrared to short-wave infrared band. This device utilizes a mechanical operating principle, physically moving optical fibers or reflector components to selectively switch optical paths. It features a simple structure and reliable performance.

Core Parameters:

• Fiber Diameter: 600μm (Large Core Design, Suitable for High-Power Applications)

• Operating Wavelength: 900-2500nm (Covering the Near-Infrared (NIR) and Short-Wave Infrared (SWIR) Bands)

• Typical Insertion Loss: <1.5dB

• Switching Time: 10-50ms (Depending on the Model)

• Return Loss: >50dB

• Repeatability: ±0.1dB

• Return Loss: ≥30dB

• PDL: ≤0.1dB

II. Features

High Stability: Precision mechanical design ensures long-term positioning accuracy
Large Core Compatibility: 600μm fiber design simplifies alignment, making it suitable for industrial environments
Broad Spectrum Support: 900-2500nm wavelength range covers a wide range of laser sources and detectors
Drive Voltage: Typically 5V DC or 12V DC
Power Consumption: <1W (Can be lower in hold mode)
Optional TTL/RS232 Control Interface

III. Applications

1. Spectral Analysis System
Near-Infrared (NIR) Spectrometer
Short-Wave Infrared (SWIR) Material Detection
Multi-Channel Spectral Acquisition System Switching

2. Fiber Optic Sensing Network
Distributed Temperature/Strain Sensing (DTS/DSS)
Multi-Point FBG Sensor Array Monitoring
Industrial Process Control Sensing System

3. Medical and Biotechnology
Optical Coherence Tomography (OCT) System
Optical Path Switching for Laser Therapy Equipment
Multispectral Tissue Detection

4. Industrial and Defense Applications

Infrared Countermeasures System
LiDAR Multi-Channel Switching
Industrial Laser Processing Equipment

IV. Selection Considerations

Wavelength Matching: Ensure the operating wavelength fully covers the application requirements.
Power Capacity: Large-core fiber typically has higher power capabilities, but specific parameters still need to be confirmed.
Environmental Adaptability: Consider temperature, vibration, and other tolerances based on the operating environment.
Switching Speed: Mechanical optical switches are slower than MEMS switches, so the real-time performance requirements of the system must be evaluated.
Reliability: Typical mechanical lifespan >1 million switching cycles, especially for critical applications.

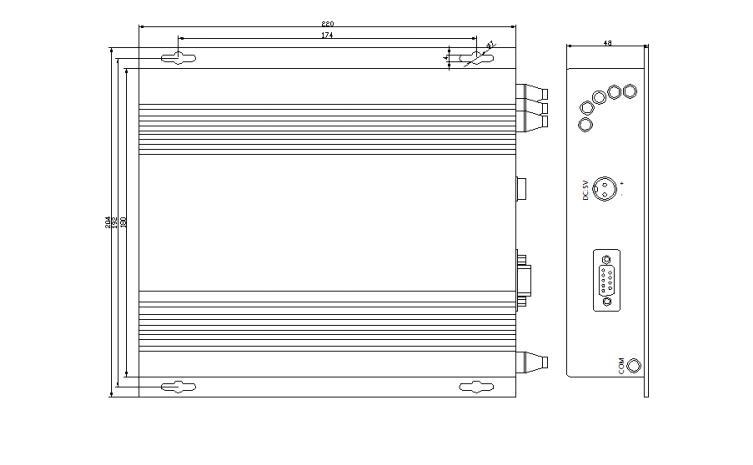

xhphotoelectric 600µm optical switch module dimensions:

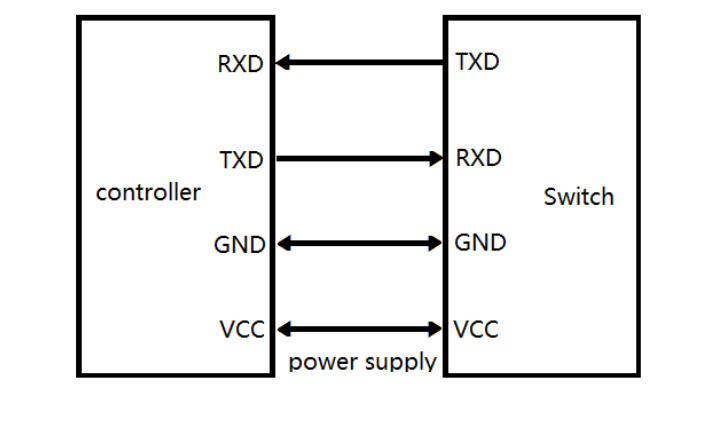

Control connection diagram:

Xhphotoelectric offers large-core, high-power optical switches supporting wavelengths from 200 to 2500nm. For custom requirements, please contact our sales engineers.
