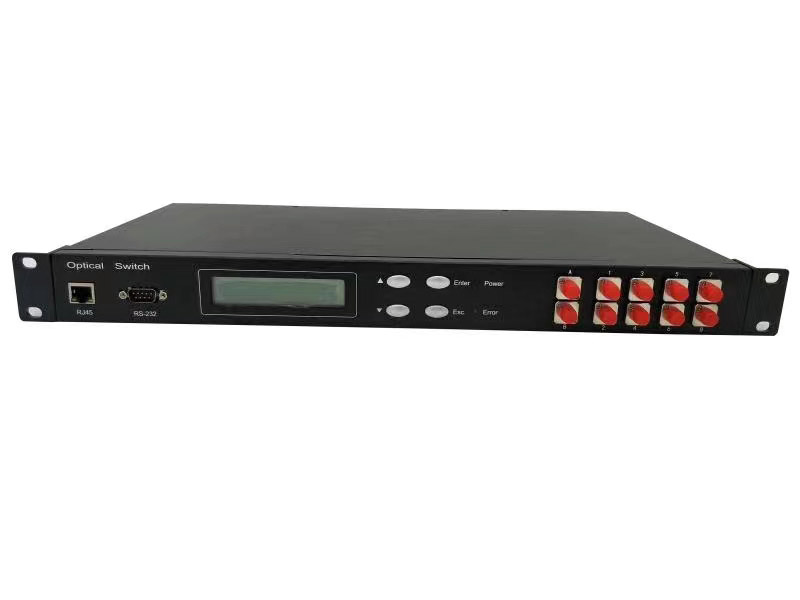

XH-FSW-2x2F optical switch

Analysis of the Causes and Influencing Factors of Optical Switch Insertion Loss

Overview: Insertion loss is one of the core indicators for measuring the performance of optical switches, directly affecting the transmission distance, signal-to-noise ratio, and overall efficiency of optical communication systems. This article systematically explains the definition and sources of optical switch insertion loss, and deeply analyzes the key factors affecting its magnitude, including material characteristics, structural design, manufacturing process, and operating conditions, providing a reference for the selection, optimization, and application of optical switches.

I. Definition of Insertion Loss

Insertion loss refers to the ratio of the output optical power to the input optical power after the optical signal passes through the optical switch, usually expressed in decibels. The calculation formula is:

IL



Where Pin is the input optical power and Pout is the output optical power. A smaller IL value indicates less attenuation of the optical signal by the optical switch and better performance.

II. Main Factors Affecting Insertion Loss

The insertion loss of an optical switch is not caused by a single reason, but rather the result of the combined effect of multiple factors. These can be mainly divided into the following categories:

1. Intrinsic Loss
This is the loss determined by the working principle and materials of the optical switch itself, which is theoretically impossible to completely eliminate.

  • Material absorption: When light propagates in waveguide or fiber materials, the material itself absorbs part of the light energy and converts it into heat. Different materials (such as silicon, indium phosphide, and polymers) have different absorption coefficients.
  • Scattering loss: Due to uneven material density, rough interfaces, or microscopic defects, light undergoes Rayleigh scattering or Mie scattering, resulting in energy loss. This is particularly critical at the waveguide sidewalls and fiber end faces.
  • Mode mismatch: When light is coupled from the input fiber to the waveguide of the optical switch, or from the waveguide back to the output fiber, if the mode field diameters of the two do not match, it will lead to significant coupling loss. This is a major source of loss in many integrated optical switches.

2. Structural Design and Process-Related Losses
This part of the loss is closely related to the specific design and manufacturing level of the device, and is the main focus for optimizing and reducing insertion loss.

  • Waveguide bending loss: In integrated optical circuits, optical waveguides need to be bent to achieve routing and compact layout. The smaller the bending radius, the greater the loss due to radiation. A balance needs to be struck between device size and bending loss during design. Splitting/Combining Loss: For optical switches such as Mach-Zehnder interferometer or micro-ring resonator types, their internal structures include beam splitting/combining elements such as Y-branches and multimode interference couplers. The imperfections of these structures themselves introduce losses.
  • Switching Unit Loss: Loss caused by the switching action itself. For example:
    MEMS optical switches: Small angular deviations and surface flatness (roughness) of the micromirrors directly affect reflection efficiency.
    Thermo-optic/Electro-optic switches: Switching is achieved by changing the refractive index of the material; the electrode structure, heating efficiency, or electric field uniformity affects the transmission characteristics of the optical mode.
    Magneto-optic/Acousto-optic switches: The conversion efficiency and imperfections of the relevant materials lead to losses.
  • Alignment Errors: The three-dimensional (axial, lateral, and angular) alignment accuracy between the fiber and the waveguide or micromirror is critical in determining coupling loss. Sub-micron deviations can cause several dB of loss. This depends on high-precision packaging processes.
  • End-face Reflection: Fresnel reflection occurs at the interface between the fiber/waveguide end face and the air due to the difference in refractive index (typically about 3.5% at each interface). This loss can be significantly reduced by using anti-reflective coatings or grinding the end face at a certain angle.

3. Operating Conditions and Environmental Factors
The performance of optical switches varies with their operating state and external environment.

  • Wavelength Dependence: The absorption and scattering coefficients of the material, as well as the dispersion characteristics of the waveguide, are wavelength-dependent. Therefore, the insertion loss of an optical switch is usually specified within a wavelength range, with the minimum loss at the center of the window.
  • Polarization-Dependent Loss: Many optical waveguide structures have different effective refractive indices and confinement for different polarization states of light (TE and TM modes), resulting in different losses and switching characteristics. High polarization-dependent loss can affect system stability.
  • Temperature Stability: Temperature changes cause changes in the refractive index of the material and the waveguide dimensions (thermal expansion and contraction), thereby changing the coupling efficiency and waveguide transmission characteristics, leading to insertion loss drift.
  • Switching State and Crosstalk: In the “on” state, ideally, light should be completely output from the designated port. However, in reality, some light will always leak to other ports (crosstalk), and this leaked light essentially represents a power loss in the main channel, affecting the effective insertion loss.

III. Loss Characteristics of Different Types of Optical Switches

  • Mechanical optical switches (e.g., MEMS): The loss is usually low (can be less than 0.5 dB), mainly due to reflection loss from micromirrors, fiber alignment errors, and beam expansion loss caused by the limited number of ports.
  • Waveguide optical switches (e.g., thermo-optic silicon-based switches): The loss is relatively high (ranging from 1-5 dB), mainly due to mode field mismatch caused by the high refractive index difference of silicon waveguides (large coupling loss with optical fibers), waveguide sidewall scattering, and inherent losses from structures such as Y-branches.
  • Other types (magneto-optic, acousto-optic): The loss is usually higher, mainly limited by material properties, conversion efficiency, and design complexity.

IV. Summary

The insertion loss of optical switches is a comprehensive indicator coupled by multiple factors. Reducing loss requires collaborative innovation from multiple levels, including material system selection, waveguide structure optimization (such as using adiabatic tapers to improve mode field matching), nanoscale precision manufacturing, and automated active alignment packaging.

With the development of silicon photonics technology, heterogeneous integration technology, and advanced packaging technology, the insertion loss of optical switches is continuously decreasing, while their integration density, scale, and stability are also continuously improving, laying a solid foundation for the next generation of high-speed optical communication, optical computing, and sensing networks.
