Building Efficient and Reliable Optical Networks: An In-Depth Look at the Monitoring and Testing Applications of 1:99 Optical Splitters

Introduction

In modern fiber-optic communication networks, optical splitters play a crucial role, particularly the 1:99 ratio optical splitter, which has found widespread application in network monitoring and testing due to its unique performance characteristics. This article delves into the working principles, technical features, and key applications of 1:99 optical splitters in network monitoring and testing.

Overview of 1:99 Optical Splitters

Basic Working Principle

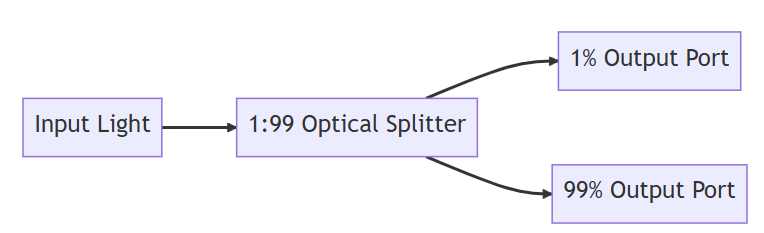

A 1:99 optical splitter is a passive optical device manufactured using planar lightwave circuit (PLC) or fused biconical taper (FBT) technology. It distributes an input optical signal into two output ports at a ratio of 1% and 99%. Its core function is to achieve precise optical power distribution while maintaining low insertion loss and high isolation.

echnical Features

• Precise splitting ratio: Typical tolerance within ±0.5%
• Low insertion loss: ~20 dB for the 1% port, ~0.2 dB for the 99% port
• High directivity: >55 dB
• Broad operating wavelength range: 1260–1650 nm
• Excellent polarization-dependent loss (PDL): <0.2 dB

Network Monitoring Applications

Online Monitoring Systems

The 1:99 optical splitter is an ideal choice for non-intrusive network monitoring:

1. 1% port: Connects to an OTDR (Optical Time-Domain Reflectometer) or optical spectrum analyzer
2. 99% port: Ensures normal transmission of service signals with minimal impact on the main channel

This configuration enables:

• Real-time network performance monitoring
• Fault localization and diagnostics
• No disruption to normal traffic

Typical Application Scenarios

• This 1:99 split monitoring solution is widely used in scenarios requiring extremely high stability:

• Telecommunications backbone networks and metropolitan area networks: Continuously monitor the health of core routing.

• Cable television (CATV) fiber networks: Ensure the transmission quality of video broadcast signals.

• Data Center Interconnect (DCI): Monitor link status during high-speed data exchange.

• FTTx passive optical networks: Monitor downstream optical signals at the OLT.

Challenges and Solutions

Common Challenges

1. Weak monitoring signal: The 1% port signal may be too weak for detection
   • Solution: Use high-sensitivity detection equipment
2. Interference in multi-wavelength systems
   • Solution: Add bandpass filters
3. Long-term stability issues
   • Solution: Choose high-quality components and perform regular maintenance

Future Trends

1. Smart integration: Combine with AI algorithms for predictive maintenance
2. Higher precision: Nanoscale splitting ratio control technology
3. Multi-functional integration: Combine monitoring with other network functions

Conclusion

The 1:99 optical splitter, as a critical component for optical network monitoring and testing, achieves an optimal balance between service transmission and network monitoring through its precise optical power distribution capability. As optical networks evolve toward higher speeds and greater reliability, the applications of 1:99 optical splitters will expand further, with continuous technological advancements providing robust support for building efficient and reliable optical network infrastructure. Network planners and operators should fully understand its characteristics and applications to maximize network performance and operational efficiency.
