Comprehensive Analysis of Polarization Maintaining Optical Circulators: The “Directional Traffic Director” in Laser Applications

Polarization Maintaining Optical Circulators (PMOCs) are a special type of optical device that plays a crucial role in various laser applications, including fiber optic communications, laser systems, fiber optic sensors, and spectroscopy. With their precise control over the polarization state of light and their directing functionality, PMOCs serve as the “directional traffic director” in laser applications.

I. Basic Principle of Polarization Maintaining Optical Circulators

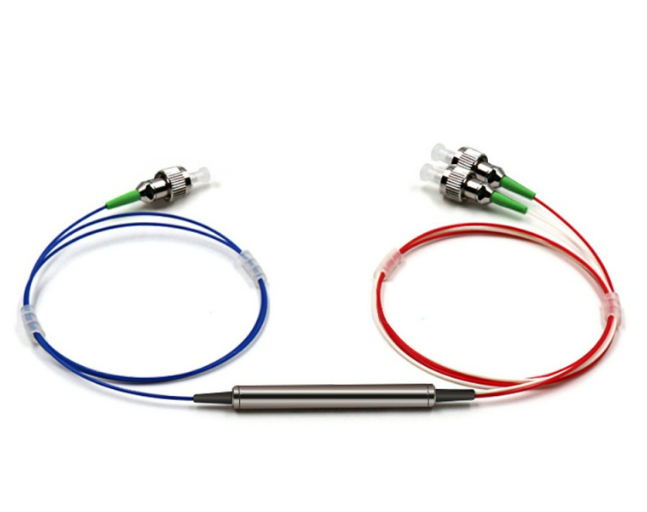

A polarization maintaining optical circulator is an optical component designed to direct light signals in a unidirectional manner while maintaining the polarization state of the light. Its working principle is similar to that of a regular optical circulator, which directs light between different ports based on the light’s propagation direction. The key difference is that a PMOC ensures the light’s polarization state remains unchanged during transmission, which is crucial for applications that require strict control over the polarization state of the light.

PMOCs are typically made from optical fibers, nonlinear optical materials, and specific optical components such as waveguides or crystals. Through a well-designed coupling mechanism and precise optical path control, PMOCs ensure that light signals with specific polarization states are switched between multiple ports while preventing polarization loss or distortion.

II. Application Areas of Polarization Maintaining Optical Circulators

1. Fiber Optic Communications

In fiber optic communication systems, controlling and stabilizing the polarization state of light is essential to ensure the quality of signal transmission. This is especially important in long-distance transmission and high-speed data communication, where the polarization characteristics of light are crucial for system stability and signal integrity. PMOCs effectively control the polarization state of light, preventing issues such as polarization mode dispersion (PMD) or polarization mismatch, and are widely used in advanced fiber optic communication systems.

2. Laser Systems

In laser systems, especially those requiring high stability and high power, precise control of the laser output’s polarization state is often necessary. PMOCs play a vital role in these systems by directing the polarized light while ensuring that the laser performance remains stable and free from polarization distortion or loss.

3. Fiber Optic Sensors

PMOCs are also used extensively in fiber optic sensors, particularly in polarization-sensitive sensor technologies such as polarization-based sensors or fiber optic gyroscopes. These sensors are critical in applications such as aerospace, geological exploration, and environmental monitoring, where high precision in measuring and detecting physical phenomena is required.

4. Spectroscopy

In the field of spectroscopy, PMOCs are widely used in experiments where precise control of the light source’s polarization is necessary. By controlling the polarization state of the light, more accurate spectral data can be obtained, thereby improving the precision and reliability of experiments.

5. Quantum Information Technology

With the development of quantum communication and quantum computing technologies, PMOCs have gained importance in quantum information applications. In quantum key distribution (QKD) protocols, for example, precise control over the polarization of light is key to ensuring secure information transmission. PMOCs provide an efficient and stable means of polarization control, making them an essential tool in quantum information technology.

III. Technical Challenges of Polarization Maintaining Optical Circulators

While PMOCs perform excellently in various fields, they still face some technical challenges in both design and application:

1. Stability of the Polarization State

Despite their ability to maintain the polarization state of light, the polarization state can be influenced by external factors such as temperature changes, mechanical stress, or vibrations, especially during long-term or high-power operation. Improving the stability of PMOCs under harsh environmental conditions is an important area for future development.

2. High Power Transmission

For high-power applications, PMOCs must be designed to prevent excessive signal loss or thermal effects. Since laser systems often require high-power signal transmission, the selection of materials, precision in design, and heat dissipation capabilities of PMOCs must meet higher standards.

3. Size and Integration

As photonic technologies advance, there is increasing demand for the miniaturization and integration of optical devices. The challenge lies in designing PMOCs that retain their optical performance while reducing their size and integrating them with other optical components, which is a key direction for future development.

IV. Future Trends in Polarization Maintaining Optical Circulators

1. Integration and Miniaturization

In the future, PMOCs will increasingly evolve toward integration and miniaturization, especially in fiber optic communications, sensing, and laser systems, where integrated PMOCs can achieve efficient optical path control in more compact spaces.

2. High Power and Stability

With the advancement of laser technologies, PMOCs will be used in higher power laser systems. To accommodate these high-power environments, future PMOCs will innovate in material selection, thermal management, and structural design to ensure their stability and reliability in high-power transmissions.

3. Intelligence and Adjustability

In the future, PMOCs will not only function as simple directional light transmission devices but may also feature intelligence and adjustability. For instance, they could automatically adjust the polarization state or operating mode based on environmental changes, providing more precise control and flexible applications.

Conclusion

As the “directional traffic director” in laser applications, Polarization Maintaining Optical Circulators, with their unique ability to control polarization and direct light, play an irreplaceable role in fiber optic communications, laser systems, fiber optic sensors, and more. With ongoing technological advancements and innovations, the scope of PMOC applications will continue to expand, playing a key role in a wider range of fields.
