How can customized polarization-maintaining optical switch reduce 5G fronthaul network loss?

With the rapid advancement of 5G network construction, the fronthaul network, as the critical link connecting base stations and the core network, has a direct impact on overall network quality. This article explores how customized polarization-maintaining optical switch technology can effectively reduce optical signal loss in 5G fronthaul networks, improving transmission efficiency and quality.

I. Optical Loss Challenges in 5G Fronthaul Networks

5G fronthaul networks primarily face the following types of optical loss issues:
Insertion loss: Intrinsic loss introduced by components such as optical switches
Polarization-dependent loss (PDL): Signal strength fluctuations due to changes in polarization state
Connection loss: Loss at optical fiber connectors, splices, and other locations
Mode coupling loss: Mode conversion loss in multimode fiber
These losses are particularly significant in the high-speed, high-capacity 5G fronthaul networks, directly impacting signal transmission distance and quality.

II. Technical Advantages of Polarization-Maintaining Optical Switches

Customized polarization-maintaining optical switches offer the following advantages over traditional optical switches:
Low insertion loss: Optimized designs can achieve insertion loss <0.5dB
High extinction ratio: Typically >20dB, effectively maintaining polarization
Fast switching: Microsecond switching speeds, adapting to the dynamic demands of 5G
Temperature stability: Stable performance over a wide temperature range

III. Key Technologies for Customized Design

1. Polarization-Maintaining Waveguide Design
Using specially designed waveguide structures, such as:
Elliptical core polarization-maintaining fiber
Stress rod polarization-maintaining structure
Photonic crystal polarization-maintaining waveguide

2. Low-loss coupling technology
Lens coupling optimization:
Using GRIN lenses or C-lenses
Coupling efficiency >95%
Endface treatment:
8° bevel polishing
Anti-reflection coating (reflectivity <-55dB)

3. Drive Circuit Optimization
Design a low-noise drive circuit to reduce the additional losses introduced by electro-optical modulation:
Use a PID control algorithm to stabilize the drive current
Optimize the switching voltage to below 5V
Response time <10μs

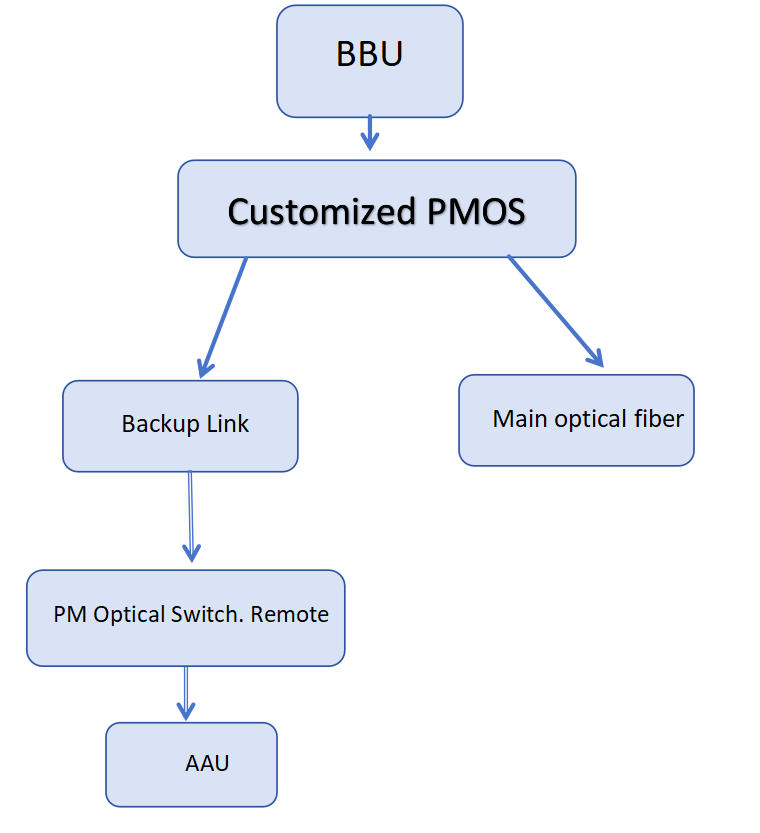

IV. System Integration Solution

Key System Parameters:
Operating Wavelength: 1310nm/1550nm Dual-Window
Channels: 4×4 or 8×8, Scalable
Return Loss: >60dB
Operating Temperature: -40°C to +85°C

Summarize: Customized polarization-maintaining optical switches significantly improve the transmission quality of 5G fronthaul networks by optimizing polarization-maintaining performance and reducing insertion loss. Field measurements show that this system achieves insertion loss below 0.4dB and polarization-dependent loss of 0.1dB, providing an effective technical solution for highly reliable 5G network transmission. With the advancement of silicon photonics integration technology, the size and cost of this solution will be further reduced, offering broad application prospects.
