Key Passive Components in Optical Fiber Communication

In optical fiber communication systems, Passive Optical Components (POCs) operate without an external power supply and are primarily responsible for the transmission, distribution, isolation, and protection of optical signals. This article provides a detailed introduction to six key passive components: optical couplers, wavelength division multiplexers (WDM), optical isolators, optical circulators, and optical attenuators, analyzing their principles, types, and applications.

1.Optical Coupler

Principle

Fiber couplers use fused-taper or planar waveguide technology to distribute an input optical signal to multiple output ports (e.g., 1×2 or 2×2 configurations) in a specific ratio.

Types

Variable Split Ratio Coupler: e.g., 50:50, 90:10.
Wavelength-Insensitive Coupler (WIC): Maintains a stable split ratio across a broad wavelength range.
Polarization-Maintaining Coupler (PM Coupler): Used in polarization-sensitive fiber systems.

Applications
Optical network splitting (e.g., OLT→ONU in PON).
Signal monitoring: Diverts a portion of optical power for detection.

2. Wavelength Division Multiplexer (WDM)

Principle

Utilizes wavelength-dependent properties to combine (multiplex) or separate (demultiplex) optical signals of different wavelengths in a single fiber. Common technologies include:
Thin-Film Filter (TFF): Uses multilayer dielectric films to select specific wavelengths.
Arrayed Waveguide Grating (AWG): Based on diffraction grating principles, supports multiple channels (e.g., 40/80 channels).

Types

CWDM (Coarse WDM): Channel spacing of 20nm (1270~1610nm), cost-effective.
DWDM (Dense WDM): Spacing of 0.8nm/0.4nm (C/L band), high capacity.

Applications

Long-haul backbone networks (e.g., 100G DWDM systems).
Data center interconnects (DCI).

3. Optical Isolator

Principle

Based on the Faraday magneto-optic effect, it allows forward transmission with low loss (<0.5dB) while blocking backward reflections (isolation >30dB). Key structures include:
Polarization-Dependent Isolator: Requires a polarizer.
Polarization-Independent Isolator: Uses birefringent crystals.

Applications

Laser protection: Prevents reflected light from damaging the source.
Amplifier systems (e.g., prevents self-oscillation in EDFA).

4. Optical Circulator

Principle

A non-reciprocal device that routes optical signals in a fixed sequence (e.g., Port 1→2→3→…), typically with 3 or 4 ports. Key technologies:

Faraday rotator + Polarization beam splitter.

Applications

Bidirectional communication: Enables single-fiber bidirectional transmission (e.g., BIDI modules).
Reflective signal routing: Works with FBGs in sensing networks.

5. Optical Attenuator

Principle

Reduces optical power via absorption, reflection, or scattering. Types include:
Fixed Attenuator: e.g., 5dB, 10dB ceramic ferrule type.
Variable Optical Attenuator (VOA): Mechanical (gap adjustment) or MEMS-based.

Applications

System testing: Simulates long-distance transmission loss.
Power balancing: Prevents receiver overload.

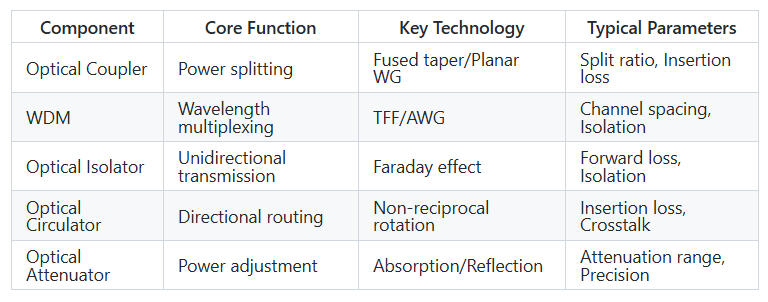

Comparison Summary
