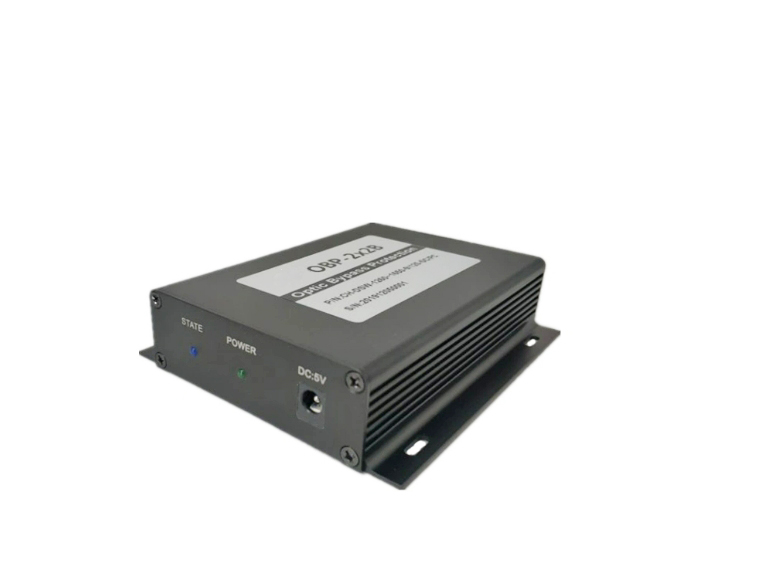

Optical Bypass Protection Module

1. Overview of Optical Bypass Protection Module

The Optical Bypass Protection Module (OBP) is a key protection device used in optical fiber communication networks. It is mainly used to automatically or manually bypass the faulty node when the network equipment fails or the power fails to ensure that the communication link is not interrupted. This module is an important component for improving network reliability and availability in modern optical fiber communication systems.

The Optical Bypass Protection Module can complete the switching of the primary and backup paths within milliseconds through the optical path switching mechanism of the physical layer, effectively avoiding the interruption of the entire communication link caused by a single node failure. It is usually deployed at key node locations in the network, such as data center interconnection, metropolitan area network core nodes, and relay sites of long-distance backbone networks.

2. Main features of the optical bypass protection module

(1) High reliability design
Adopts passive optical devices and can work without external power supply
With automatic fault detection and switching capabilities
Modular design supports hot plugging, easy maintenance and replacement
(2) Fast switching performance
The switching time is usually ≤25ms, meeting the carrier-grade protection requirements.
Supports automatic and manual switching modes
Non-stop switching to ensure business continuity
(3) Flexible configuration method
Supports multiple protection architectures such as 1+1, 1:1, 1:N
Can be configured as unidirectional or bidirectional protection
Compatible with multiple fiber interface types (LC/SC/FC, etc.)
(4) Complete monitoring function
Provides real-time optical power monitoring
Supports remote status query and control
With alarm function, can be integrated into the network management system
(5) Environmental adaptability
Wide operating temperature range (-40℃～+85℃)
Dust-proof and moisture-proof design
Seismic performance meets telecom equipment standards

3. Typical applications of optical bypass protection modules

(1) Data Center Interconnection Protection
In modern data center interconnection (DCI) scenarios, optical bypass protection modules can be deployed on the key link between two data centers. When an intermediate transmission device fails, it can automatically bypass the faulty device and directly connect the optical fibers at both ends to ensure that important services between data centers are not interrupted.
(2) Metropolitan Area Network Core Node Protection
Deploying optical bypass protection modules at the core node of the metropolitan area network can provide protection for key equipment such as core routers and switches. When these devices need to be maintained or upgraded, they can be temporarily bypassed through the bypass module to avoid affecting the operation of the entire network.
(3) Long-distance backbone network protection
In long-distance optical transmission systems, optical bypass protection modules can be used to protect relay sites. When a relay device fails, it can automatically switch the signal to an alternative path or directly connect to ensure the reliability of long-distance transmission.
(4) Military and emergency communication systems
In scenarios with extremely high reliability requirements such as military communications and emergency communications, optical bypass protection modules can ensure that communication links are not interrupted under extreme conditions and meet the communication needs of critical missions.
(5) 5G fronthaul/midhaul network
In the 5G network architecture, the optical bypass protection module can be used to protect the connection between DU (distributed unit) and CU (centralized unit) to ensure the continuity of 5G services.

4. Technology development trend

With the advancement of optical communication technology, the optical bypass protection module is developing in the following directions:
Intelligence: integrating AI algorithms to achieve fault prediction and intelligent switching strategies
Miniaturization: adopting a more compact design to increase port density
Low loss: optimizing optical design to reduce insertion loss
Multi-service support: adapting to SDN/NFV network architecture and supporting flexible service configuration
Green energy saving: further reducing power consumption and meeting environmental protection requirements
As the “safety guard” in the optical fiber communication network, the optical bypass protection module plays an irreplaceable role in ensuring the high availability of the network. With the expansion of network scale and the increase of business importance, its application scenarios will become more extensive. In the future, combined with emerging optical communication technologies, the optical bypass protection module will continue to evolve and provide strong support for building a more reliable and intelligent optical network infrastructure.
