RS232 Controlled 1×4 Polarization-Maintaining Optical Switch Module: Core Component for Precision Optical Path Control

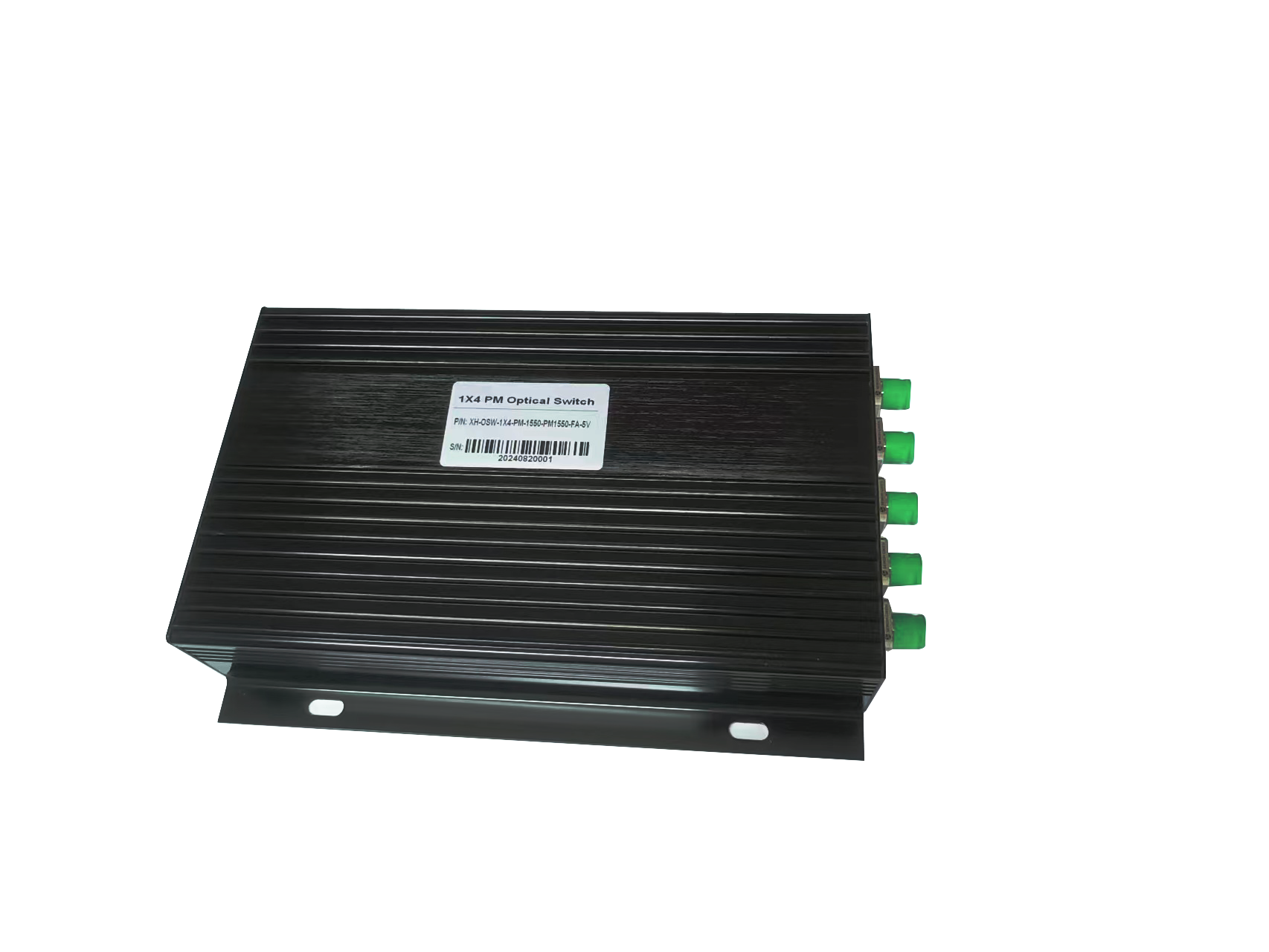

In cutting-edge fields such as high-speed optical communication, fiber optic sensing, and quantum information, the rapid, stable, and low-loss switching and control of optical signals are crucial to system success. The RS232 controlled 1×4 polarization-maintaining optical switch module launched by Nanning Xiong Hua photoelectric is a high-performance core optical device designed to meet the demands of such high-requirement applications. It integrates precision mechanical optical design, intelligent electronic control, and polarization-maintaining technology, providing a flexible and reliable solution for complex optical networks.

I. Core Features

High-Precision Polarization Maintaining
Core Technology: The internal optical path of the module is specifically designed for polarization-maintaining fibers, capable of precisely aligning and maintaining the polarization state of the input optical signal. Its polarization extinction ratio typically exceeds 20dB, ensuring the polarization purity of the output optical signal, which is crucial for coherent communication, fiber optic gyroscopes, and other systems that rely on polarization state.
Low Polarization-Dependent Loss: Throughout the switching process, the insertion loss variation for different polarization states is minimal, ensuring the stability of system performance.

Stable and Reliable Mechanical Optical Path Switching
Utilizes a durable and precise mechanical switching structure, offering advantages such as good repeatability, high stability, and high return loss compared to other technologies.
Low Insertion Loss: Typical values ​​are usually less than 1.0dB, minimizing power attenuation of the optical signal.
High Channel Isolation: Typically greater than 50dB, effectively avoiding crosstalk between channels and ensuring signal independence.

Flexible and Convenient RS232 Serial Port Control
Standardized Interface: Provides a universal RS232 serial communication interface, which can be directly connected to computers, industrial control computers, or embedded main control boards, offering excellent compatibility.
Command-Based Operation: Users can quickly switch channels and query module status (such as current channel, temperature, etc.) by sending simple ASCII code commands, facilitating system integration and automated control.
Remote Control Capability: Combined with serial-to-fiber or network devices, remote and distributed optical path control can be achieved.

Compact Structure and Wide Operating Range
Miniaturized Packaging: Uses a standardized compact metal casing with good mechanical strength and heat dissipation performance, making it easy to integrate into various optical equipment chassis.

II. Main Application Areas

With its high polarization-maintaining, switchable, and easily controllable characteristics, this module plays an indispensable role in numerous high-tech fields:

Fiber Optic Sensing Networks
Distributed Fiber Optic Sensing Systems: As a key routing and switching device, it enables a single demodulation device to cyclically inspect multiple sensing fibers, significantly improving system capacity and cost-effectiveness. Applications include oil and gas pipeline security, perimeter intrusion detection, and bridge health monitoring.
Fiber Optic Gyroscope Arrays: In inertial navigation systems, it is used to switch multiple fiber loops, constructing multi-axis gyroscopes or redundant backup systems.

High-Speed ​​Coherent Optical Communication and Testing
Laboratory Research and Testing: In optical device testing platforms, it quickly switches the optical path of the device under test, enabling automated parameter measurement (such as insertion loss, polarization-dependent loss, bandwidth, etc.).
System Protection and Routing: In polarization-maintaining optical communication systems, it acts as an optical path protection switch or signal routing selector, improving system reliability.

Quantum Information Research
Quantum Key Distribution Networks: In QKD systems that require maintaining the polarization state of photons, it is used to build complex multi-user network topologies, enabling dynamic selection of key distribution paths.
Quantum Optics Experiments: Used to build reconfigurable optical quantum computing or simulation experimental optical paths, increasing experimental flexibility.

Aerospace and Defense
Applied in airborne and shipborne optoelectronic systems and military communication links that have extreme requirements for reliability, environmental adaptability, and polarization characteristics.

Medical and Biophotonics
In multi-channel optical coherence tomography or multi-point laser treatment systems, it achieves precise delivery of light sources to different detection points or treatment points.

Conclusion

Nanning Xiong Hua photoelectric RS232 controlled 1×4 polarization-maintaining optical switch module successfully integrates high polarization-maintaining performance, reliable optomechanical switching, and intelligent electronic control interface. It is not just a simple optical path “switch,” but a core cornerstone for building intelligent, highly reliable advanced optical systems. As fiber optic technology develops towards higher speed, greater sensitivity, and increased complexity, the application prospects of such high-performance, easily integrated optical switch modules will undoubtedly become even broader.
