Single-Mode Optical Switch: The Precision “Traffic Controller” of Modern Optical Networks

In today’s era of high-speed information transmission, fiber optic networks form the backbone of global communications. Within this invisible network, the efficient, flexible, and reliable control of optical signal paths is a core challenge. The single-mode optical switch, a key passive (or actively driven) optical component, acts as a precision “traffic controller,” enabling the intelligent switching of optical signals between different channels. It provides a solid foundation for the dynamic management and optimization of modern optical networks.

I. Overview of Single-Mode Optical Switches

Definition: A single-mode optical switch is a device specifically designed for single-mode fiber systems. Its function is to physically switch an optical signal from a specific input port to one or more designated output ports. As the name implies, it only allows the fundamental fiber mode (LP01 mode) to propagate, offering very low loss and dispersion, making it suitable for long-distance, high-capacity communication scenarios.

Core Operating Principles: Single-mode optical switches are implemented based on various physical principles and technologies, primarily including:

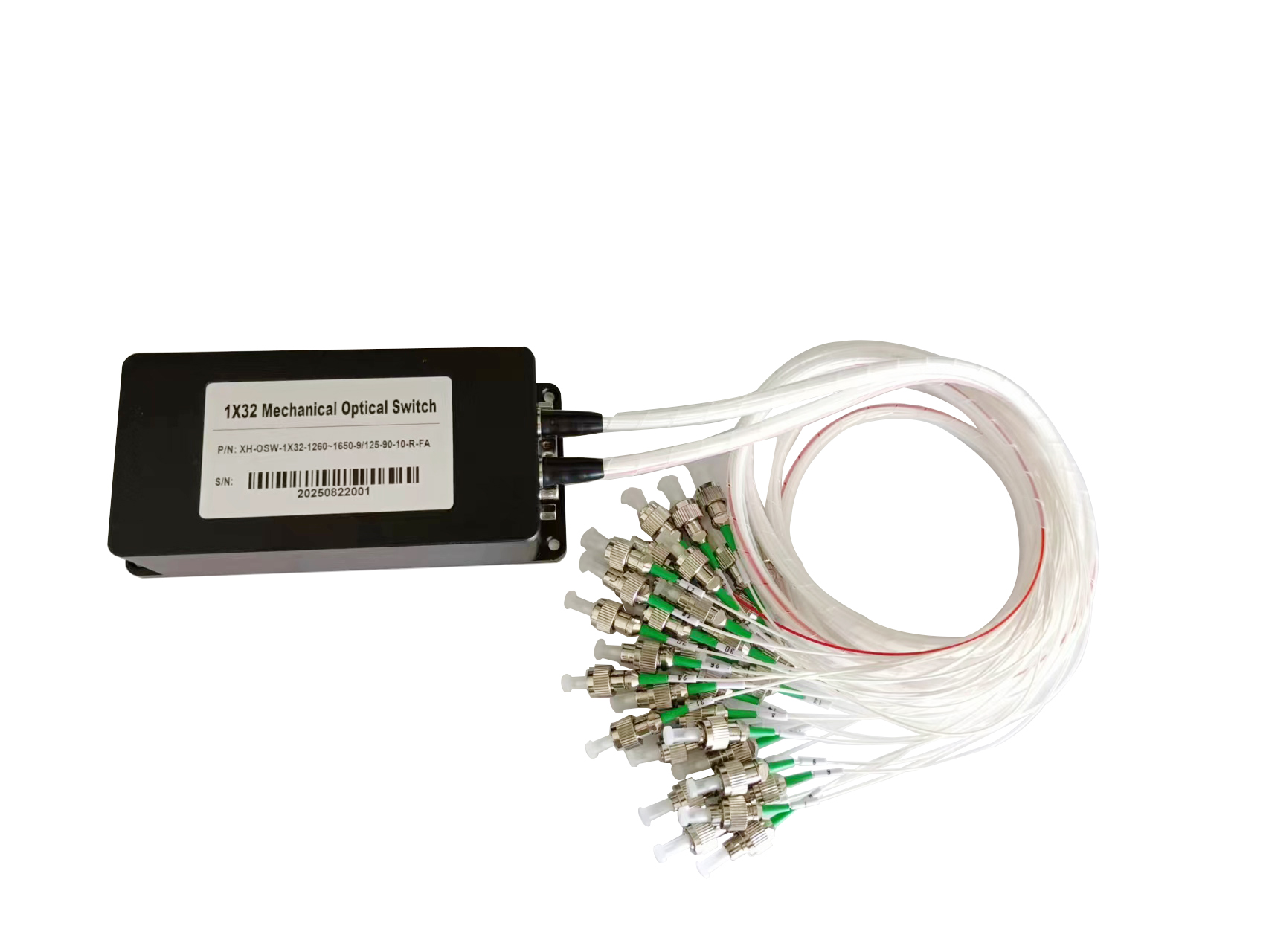

1. Mechanical Optical Switches:

   • Moving Fiber Type: Physically moves the end face of the input or output fiber using Micro-Electro-Mechanical Systems (MEMS) technology to align it with the target port.

   • Prism/Mirror Type: Uses micro-motors or electromagnetic actuation to rotate the angle of a micro-mirror or prism, reflecting the incident light beam into different output fibers.

   • Characteristics: Advantages include low insertion loss and low crosstalk. Disadvantages are slow switching speed (typically in the millisecond range), the presence of moving parts, and long-term reliability affected by mechanical wear and vibration.

2. Waveguide-Based Optical Switches:

   • Thermo-Optic Switches: Fabricate optical waveguides on Planar Lightwave Circuits (PLC). Heater electrodes change the refractive index in the waveguide region via the thermo-optic effect, utilizing interference (e.g., Mach-Zehnder Interferometer structure) to achieve path switching.

   • Electro-Optic Switches: Use the electro-optic effect in materials like Lithium Niobate (LiNbO₃) to rapidly change the refractive index by applying an electric field, thus switching the light.

   • Characteristics: Fast switching speed (microseconds to milliseconds for thermo-optic, nanoseconds for electro-optic), small size, ease of integration, no moving parts, and high reliability. However, insertion loss and crosstalk might be slightly higher than mechanical types.

3. MEMS Optical Switches:

   • An advanced branch of mechanical switches, these fabricate arrays of micron-scale movable mirrors on silicon chips using micromachining techniques. Electrostatic forces control the raising/lowering or tilting of these micro-mirrors to enable large-scale optical cross-connections.

   • Characteristics: Combine the low loss of mechanical switches with the speed and integrability of waveguide switches. They are one of the mainstream technologies for implementing large-scale Optical Cross-Connects (OXC).

II. Key Features of Single-Mode Optical Switches

The widespread application of single-mode optical switches stems from their series of outstanding performance characteristics:

1. High Extinction Ratio: The ratio of optical power in the ON state to the OFF state. A high extinction ratio indicates a clear distinction between the “on” and “off” states, effectively isolating unwanted signals and reducing crosstalk.

2. Low Insertion Loss: The power loss incurred when an optical signal passes through the switch is very small. This is crucial for maintaining the signal-to-noise ratio of the entire optical link, especially in complex networks with multiple cascaded switches.

3. Low Crosstalk: When the switch directs a light signal to a specific output port, the leakage of that signal power received by other output ports is extremely low. This ensures signal independence between channels.

4. Fast Switching Speed: The time required from issuing the switch command until the optical path is stably established. Speeds vary greatly between technologies, from nanoseconds to milliseconds, meeting the needs of different applications from protection switching to packet switching.

5. High Stability and Reliability: Particularly for non-mechanical switches, the absence of moving parts makes them insensitive to vibration and shock, offering long lifespan and suitability for harsh environments.

6. Long Lifespan: The lifespan of mechanical switches is typically on the order of millions of cycles, while MEMS and waveguide switches can last for billions of cycles or more.

7. Integrability: Technologies based on PLC and MEMS allow easy integration of multiple switch units onto a single chip, forming 1×N or M×N switch matrices for complex optical path routing.

III. Typical Applications of Single-Mode Optical Switches

Single-mode optical switches are core components for building intelligent, flexible, and reliable optical networks, with applications spanning various fields:

1. Optical Network Protection Switching:

   • In backbone or metropolitan area networks, if the primary fiber link fails, the system can automatically switch services to a backup link within milliseconds using an optical switch, ensuring uninterrupted communication and greatly enhancing network survivability.

2. Optical Cross-Connect (OXC):

   • At core network nodes, large M×N optical switch matrices can dynamically reconfigure the entire network’s fiber connection topology, enabling flexible wavelength-level or fiber-level scheduling and distribution. This is the foundation for building Reconfigurable Optical Add-Drop Multiplexers (ROADM) and elastic optical networks.

3. Fiber Optic Testing and Monitoring:

   • In the maintenance of fiber optic communication systems, an optical switch can connect a light source or optical power meter to multiple fibers under test in sequence, enabling automated, high-efficiency testing and performance monitoring, significantly saving labor and time costs.

4. Sensing Systems:

   • In distributed fiber optic sensing systems (e.g., DAS, DTS), optical switches can be used for multiplexing, allowing one set of interrogation equipment to monitor multiple sensing fibers in turn, expanding system capacity and reducing costs.

5. Laboratory and Research:

   • In optical experimental setups and R&D, optical switches are used to quickly set up and alter optical paths, enabling automatic switching between multiple light sources, detectors, or devices under test. They are key components in automated test systems.

6. Data Center Optical Interconnects:

   • Within large data centers, to handle constantly changing traffic patterns, optical switches can be used to reconfigure optical connections between server racks, improving data center energy efficiency and resource utilization.

Nanning Xionghua photoelectric  specializes in mechanical optical switches, magneto-optical switches, and MEMS optical switches. If you need professional customization services, please contact our sales engineers.
