Polarization-Maintaining (PM) Collimators: Comprehensive Guide to Types, Wavelengths, Applications

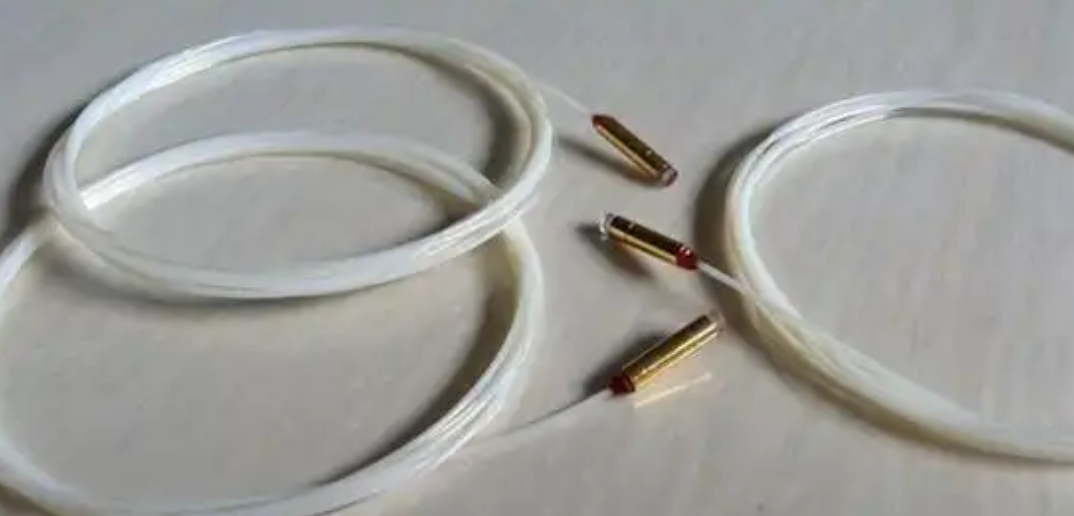

In modern optical communications, fiber sensing, and high-precision laser applications, maintaining the polarization state of an optical signal is crucial. Random changes in polarization can lead to signal jitter, increased noise, and even system failure. The Polarization-Maintaining (PM) collimator is a key passive component developed to meet this need. It not only collimates the light beam from an optical fiber into a high-quality parallel beam but also precisely maintains the linear polarization state of the input light throughout the process.

I. Core Types of PM Collimators

The classification of PM collimators is primarily based on the type of Polarization-Maintaining Fiber (PM Fiber) used internally to generate and maintain polarization. Different PM fibers create stress-induced birefringence, forming a “fast axis” and a “slow axis,” through different physical structures. The main types of PM collimators are:

1. Panda-Type PM Collimator

   • Structural Feature: Two symmetrical, circular stress-applying parts (usually made of boron-doped glass) are embedded on either side of the fiber core, resembling the eyes of a panda, hence the name.

   • Characteristics: This is a mature and stable technology. The good controllability of the distance between the stress-applying parts and the core typically results in a high Polarization Extinction Ratio (PER), a key metric for PM performance. This is currently the most common and widely used type of PM collimator on the market.

2. Bow-Tie-Type PM Collimator

   • Structural Feature: A bow-tie-shaped stress-applying part is embedded on one side of the fiber core.

   • Characteristics: The bow-tie fiber has a larger stress-applying area located closer to the core, providing a stronger birefringence effect. It generally offers better bend resistance compared to the Panda type, but the manufacturing process is more complex.

3. Elliptical Cladding-Type PM Collimator

   • Structural Feature: Birefringence is generated by the geometric asymmetry of an elliptical outer cladding, rather than by stress.

   • Characteristics: As this structure does not rely on stress, it is less affected by temperature changes. However, it is more difficult to manufacture, has a higher cost, and is less common than the previous two types.

Selection Basis: In practical applications, Panda and Bow-Tie types are the absolute mainstream. The selection is primarily based on parameters such as Polarization Extinction Ratio, insertion loss, return loss, mechanical stability, and temperature stability, rather than solely on the internal structure type.

II. Operating Wavelengths of PM Collimators

The operating wavelengths of PM collimators cover a broad spectrum from ultraviolet to infrared to meet the needs of different applications. The operating wavelength is primarily determined by two factors:

1. Wavelength Range of the PM Fiber: The PM fiber itself has an optimal operating wavelength window, such as common communication bands (850nm, 1310nm, 1550nm).

2. Coating Wavelength of the Collimating Lens: The anti-reflection coating on the lens surface is optimized for specific wavelength ranges to ensure high transmittance and low reflection loss within that band.

Common standard operating wavelengths include:

• Visible Spectrum: 635nm (red, often used for alignment and indication), 780nm (frequently used in atomic physics and spectroscopy).

• Near-Infrared Communication Bands: This is the most mainstream application area.

  • 850nm: Used for short-distance multimode communication.

  • 1310nm: Near the zero-dispersion wavelength of fiber, often used for medium- to short-distance communication.

  • 1550nm: The lowest loss window of optical fiber, it is the core band for long-haul backbone communication and DWDM systems (e.g., C-band: 1530nm-1565nm, L-band: 1565nm-1625nm).

• Special Wavelengths: Such as 1064nm (core wavelength of Nd:YAG lasers and fiber lasers), 980nm (pump wavelength for Erbium-Doped Fiber Amplifiers), and 1480nm.

Users can custom-order PM collimators for specific laser wavelengths or system requirements.

III. Key Application Areas of PM Collimators

PM collimators serve as the “gateway” and “bridge” in many high-precision optical systems, with a wide range of applications.

1. Fiber Optic Communication Systems

   • Coherent Optical Communication: In modern high-speed coherent communication, information is encoded in the phase and polarization state of light. PM collimators are used to connect the PM modulator at the transmitter and the coherent receiver, ensuring that the polarization state does not crosstalk when passing through free-space optical components (like isolators, circulators), which is key to maintaining system stability.

   • CATV & Sensing Networks: Systems using phase modulation technology also require PM components to avoid polarization-dependent signal fading.

2. Fiber Optic Sensing Systems

   • Interferometric Fiber Sensors: Such as Fiber Optic Gyroscopes (FOGs), hydrophones, and seismometers. These sensors, based on Sagnac or Mach-Zehnder interferometer principles, are extremely sensitive to polarization state. Any fluctuation in polarization directly translates into measurement error. PM collimators are used for light source input and signal output, and are core components for ensuring high accuracy and low noise in these sensors.

3. High-Power Fiber Laser/Amplifier Systems

   • Under high-power conditions, randomly polarized light can easily induce nonlinear effects and thermal damage. By using a combination of PM fiber and PM collimators, the laser can be locked into a stable linear polarization state. This is crucial for Polarization Beam Combining technology, which allows two orthogonally polarized beams to be combined losslessly into a single, higher-power beam. This is a key technical path for power scaling.

4. Scientific Research and Precision Measurement

   • Atomic Physics and Cold Atom Systems: In experiments like laser cooling and atom trapping (e.g., Magneto-Optical Traps), precise control of the laser’s polarization state (e.g., σ+, σ- circular polarization) is required. This circular polarization is typically generated from linearly polarized light using a quarter-wave plate. Therefore, a high-quality PM collimator provides a pure, stable linearly polarized light input for the system.

   • Quantum Communication: In systems like Quantum Key Distribution (QKD), where quantum states (such as polarization) carry information, PM collimators are used to ensure the integrity of the quantum state during transmission.

   • Spectroscopy and Metrology: PM collimators can be used in any precision measurement scenario requiring a stable polarized light source.

xionghua xhphotoelectric offers high-power fiber collimators, high-power polarization-maintaining fiber collimators, single-mode fiber collimators, and multimode fiber collimators.For custom services, please contact our sales representatives.
