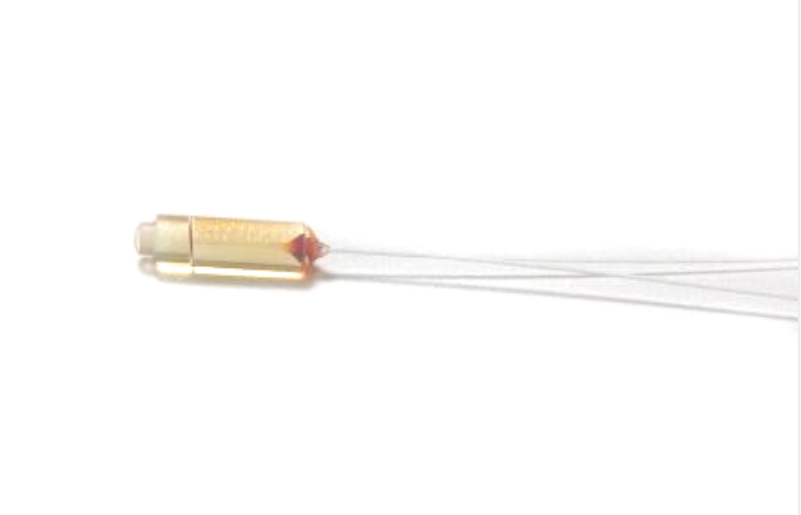

1550nm Polarization-Maintaining Dual-Fiber Collimator: Features, Advantages, and Application Areas

I. Overview

The 1550nm polarization-maintaining dual-fiber collimator is an optical device primarily used in fiber optic communication systems to accurately couple optical signals into optical fibers while maintaining their polarization state. This collimator is specifically designed for 1550nm wavelength optical signals and is suitable for high-performance communication systems such as long-distance fiber optic transmission, LiDAR, and fiber optic sensors.

This collimator utilizes a dual-fiber structure, allowing for the collimation and transmission of optical signals in two different fiber channels simultaneously while maintaining polarization characteristics. Its design goal is to minimize optical signal loss and distortion, thereby improving overall system performance.

II. Features

1. High-Precision Collimation
The 1550nm polarization-maintaining dual-fiber collimator employs advanced optical design and manufacturing processes to achieve extremely precise beam collimation, ensuring minimal optical loss and polarization-dependent loss (PDL) during signal transmission. This high-precision collimation guarantees stable signal transmission and reduces optical losses in the system.

2. Polarization-Maintaining Function
This collimator has a polarization-maintaining function, effectively preserving the polarization state of the optical signal and preventing changes in polarization state due to improper fiber connections or external environmental changes. The polarization-maintaining characteristic makes this collimator particularly important in applications requiring high precision.

3. Dual-Fiber Design
The dual-fiber design allows for the transmission of dual-channel optical signals, providing higher data transmission rates and greater system reliability. The dual-fiber structure also improves the system’s fault tolerance and adapts to more complex fiber optic network requirements.

4. High Power Handling Capability
1550nm wavelength optical signals are typically used in high-power optical communication systems. This collimator can withstand high input power without excessive optical loss or device damage, meeting the demands of high-power transmission.

5. Low Insertion Loss and Low Return Loss
Due to its precise optical design, this collimator effectively reduces insertion loss and provides low return loss (RL), ensuring the quality of optical signal transmission and system stability.

III. Application Fields

1. Long-Distance Fiber Optic Communication
The 1550nm polarization-maintaining dual-fiber collimator is widely used in long-distance fiber optic communication systems, especially in large-scale communication networks such as telecommunication networks and data centers. Its high-precision collimation and polarization-maintaining characteristics effectively improve the transmission quality of optical signals, ensuring the stability and reliability of long-distance data transmission.

2. LiDAR (Laser Radar)
In LiDAR systems, 1550nm wavelength optical signals are a common choice because they provide higher detection accuracy and a longer ranging distance. This collimator accurately transmits the laser beam to the detector, ensuring high-precision measurement in LiDAR.

3. Fiber Optic Sensors
The 1550nm polarization-maintaining dual-fiber collimator is also widely used in fiber optic sensor systems, especially in fields requiring high-precision sensing, such as structural health monitoring, environmental monitoring, and industrial automation. Its high-precision collimation and polarization-maintaining characteristics help ensure the accuracy and stability of sensor data.

4. High-Power Fiber Optic Systems
This collimator is also very important in high-power fiber optic systems, such as high-power fiber lasers and high-power amplifiers. It can handle higher optical power, avoiding signal loss and system failure due to excessive power, ensuring smooth system operation.

5. Scientific Research and Experimental Applications
In scientific research and experimental environments, the 1550nm polarization-maintaining dual-fiber collimator is widely used in optical experiments, optical communication research, quantum optics, and other fields. Its precise optical performance and high reliability make it an ideal choice for researchers and engineers.

IV. Summary

The 1550nm polarization-maintaining dual-fiber collimator, as a precision optical device, is widely used in long-distance fiber optic communication, high-power optical systems, LiDAR, and fiber optic sensors, thanks to its high-precision optical collimation, polarization-maintaining function, dual-fiber design, and high-power handling capabilities. Its excellent performance in optical signal transmission provides solid support for optical communication systems in various industries, promoting the continuous advancement of optical technology.
