Dual 1×2 Mechanical Optical Switch Module: Reliable Solution for Optical Path Switching

In modern fiber optic communication systems, the stability and flexibility of optical path switching are crucial. The dual 1×2 mechanical optical switch module, as a high-performance optical routing device, is widely used in communication networks, fiber optic testing systems, and fiber sensing applications due to its simple structure, high reliability, and low insertion loss.

1. What is a Dual 1×2 Mechanical Optical Switch Module?

As the name suggests, a dual 1×2 mechanical optical switch module integrates two independent 1×2 optical switches within a single unit. Each 1×2 switch enables the connection of one input port to one of two output ports, allowing flexible routing of optical signals between different paths.

This dual-channel design allows simultaneous handling of two optical signals, improving system integration and control efficiency. It is especially suitable for applications requiring redundancy or parallel signal control.

2. Working Principle

Mechanical optical switches typically use precision micro-mechanical structures. Through motor or electromagnetic actuation, internal components such as mirrors or fiber alignment structures are moved to change the optical path.

Key characteristics include:

• Physical contact switching ensures high stability
• High channel isolation with minimal crosstalk
• No reliance on complex optical materials or electro-optic effects

The dual 1×2 configuration integrates two independent switching mechanisms within a single module, which can be controlled separately or simultaneously.

3. Key Advantages

High Reliability
The mature mechanical structure ensures stable performance, with a lifetime exceeding millions of switching cycles.

Low Insertion Loss
Precise fiber alignment minimizes signal loss and maintains high transmission quality.

High Isolation
Effectively reduces interference between channels, improving overall signal integrity.

Dual-Channel Integrated Design
Saves space, reduces system complexity, and is easy to integrate into compact platforms such as 1U rack systems.

Multiple Control Options
Supports control interfaces such as TTL and RS232, enabling easy integration with various systems.

4. Typical Applications

Optical Network Protection Switching
Enables fast switching between primary and backup links to ensure uninterrupted communication.

Fiber Optic Testing Systems
Used in automated test equipment to switch between multiple channels, improving testing efficiency.

Data Center Optical Routing
Provides flexible optical signal management and path selection.

Fiber Optic Sensing Systems
Supports switching and acquisition of signals from multiple sensing points.

Laboratory and Research Applications
Ideal for precise optical path control in multi-channel experimental setups.

5. Customization and Expansion

The dual 1×2 mechanical optical switch module can be customized based on specific application requirements, including:

• Wavelength range (e.g., 850 nm, 1310 nm, 1550 nm)
• Fiber type (SM, MM, PM)
• Connector types (FC/PC, SC/APC, etc.)
• Packaging options (module type, rack-mounted)
• Control interfaces and communication protocols

It can also be expanded into multi-channel systems or integrated into more complex photonic subsystems.

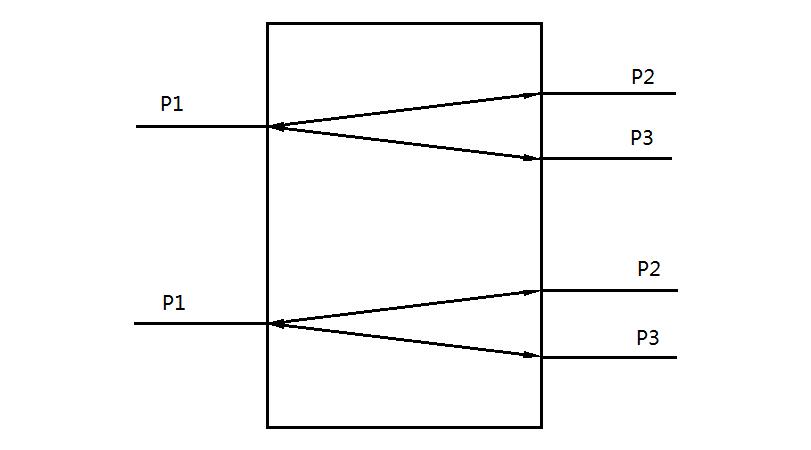

Optical Route：

6. Conclusion

As optical communication and photonic technologies continue to evolve, the demand for high-performance optical switching devices is increasing. With its excellent stability and flexibility, the dual 1×2 mechanical optical switch module has become a key component in many systems.
