Optical Switch Matrix Technology: A Core Component of Next-Generation Optical Communication Networks

I. Introduction

With the rapid development of technologies such as 5G, the Internet of Things, and cloud computing, global data traffic is experiencing explosive growth. Traditional electrical switching networks are gradually experiencing bottlenecks in bandwidth, energy consumption, and latency. Optical switching technology, with its advantages of ultra-high bandwidth, low latency, and low power consumption, has become crucial for building next-generation communication networks. As a core component of optical switching networks, the optical switch matrix is undergoing rapid technological innovation and market expansion.

II. Basic Concepts of an Optical Switch Matrix

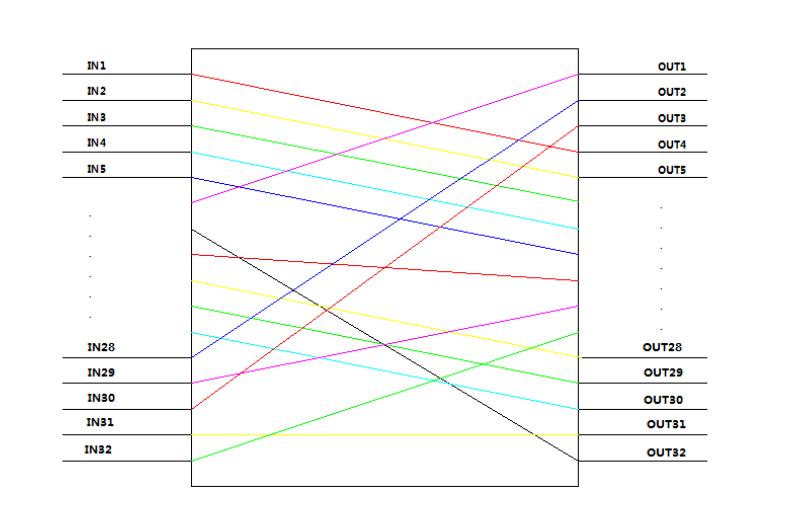

An optical switch matrix is a device that dynamically establishes optical connections between multiple optical input and output ports. The optical path diagram is shown below:

III. Main Technology Types

1. Mechanical Optical Switch:

2. Thermo-Optical Switch
Based on the thermo-optic effect of silicon-based waveguides
● Typical materials: SiO₂, polymers
● Switching time: μs
● Power consumption: 10-100 mW/port

3. Electro-Optical Switch
● Utilizes the electro-optic effect of materials such as LiNbO₃
● Switching speed: nanoseconds
● High drive voltage (5-20V)

4. Liquid Crystal Optical Switch
● Based on the birefringence effect of liquid crystal molecules
● Low power consumption (<1 mW/port)
● Medium switching speed (ms)

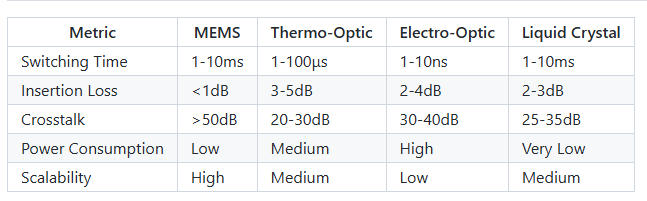

IV. Performance Comparison

V. Key Technical Challenges

● Large-Scale Integration: How to achieve monolithic integration of 1000×1000 ports or more? Low-loss design: Maintaining insertion loss <3dB is extremely challenging in large matrices.
● Fast reconfiguration: Meeting the μs-level switching requirements of 5G URLLC scenarios.
● Power consumption optimization: Data center applications require power consumption <1mW per port.
● Reliability improvement: MEMS devices must pass 10^9 switching cycle tests.

VI. Frontier Research Directions

Silicon Photonic Integration Technology:
* Utilizing CMOS-compatible processes
* Monolithic integration of optical switches, modulators, and detectors
* Typical structure: Mach-Zehnder Interferometer (MZI) switch array

Non-mechanical 3D beam steering:
* Metasurface-based beam steering
* Liquid crystal optical phased array (LC-OPA)
* Switching speeds can reach μs

Intelligent control algorithms:
* Dynamic routing optimization based on machine learning
* Predictive traffic scheduling algorithms
* Energy consumption awareness Topology Reconfiguration

VII. Typical Application Scenarios

Data Center Optical Interconnect:
*Replaces traditional Top-of-Rack (TOR) switches
*Enables all-optical interconnection between pods
*Typical configuration: 64×64 ports, μs-level reconfiguration

5G Fronthaul/Midhaul Network:
*Supports flexible CU-DU-RU networking
*Dynamic wavelength allocation
*Protection switching time <50ms

All-Optical Switching Nodes:
*Backbone Network Optical Cross-Connect (OXC)
*Wavelength Selective Switch (WSS)
*Supports Flex-Grid spectrum allocation

Conclusion

Optical switch matrix technology is at a critical stage of transitioning from the laboratory to large-scale commercial use. With the maturity of silicon photonics integration processes and the development of intelligent control algorithms, optical switches will continue to achieve breakthroughs in transmission capacity, energy efficiency, and networking flexibility, becoming a fundamental enabling technology for building terabit-per-second (Tbps) all-optical networks. The industry needs to strengthen collaborative innovation in chip design, packaging and testing, and application algorithms to accelerate technology iteration and reduce costs to meet the demands of future digital infrastructure development.
