According to the transmission mode of light in the optical fiber, the optical fiber can be divided into two types: multi-mode optical fiber and single-mode optical fiber.
The central glass core of the single-mode optical fiber is relatively thin, and the core diameter is 9-10 μm, and only one mode of light can be transmitted. Therefore, its intermodal dispersion is very small, which is suitable for long-distance communication, but its chromatic dispersion plays a major role, so the single-mode fiber has higher requirements on the spectral width and stability of the light source, that is, the spectral width should be narrow and the stability should be good.

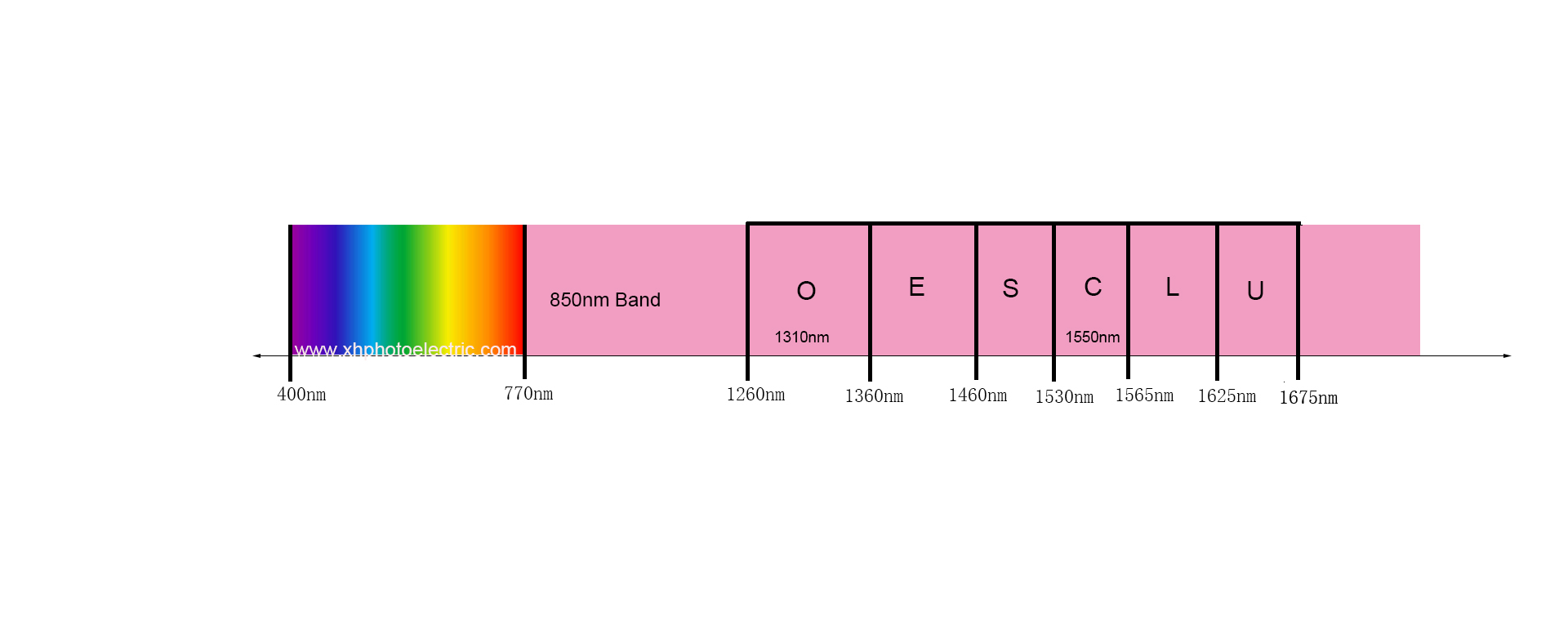

The following are: optical switch single-mode fiber wavelength range reference and WDM(wavelength division multiplexer) fiber transmission band.
| Band name | Name | Wavelength range |
| 400nm-Band | visible spectrum
Wavelength |
405nm, 444nm, 445nm, 447nm, 450nm, 454nm, 457nm, 460nm, 462nm, 465nm, 470nm, 473nm, 480nm, 484nm, 488nm, 490nm, 491nm, 501nm, 505nm, 509nm, 510nm, 514nm, 515nm, 520nm, 522nm, 523nm, 526nm, 530nm, 532nm, 540nm, 543nm, 550nm, 552nm, 555nm, 556nm, 561nm, 577nm, 588nm, 589nm, 593.5nm, 594nm, 600nm, 604nm, 607nm, 612nm, 622nm, 627nm, 630nm, 632nm, 633nm, 635nm, 637nm, 638nm, 640nm, 642nm, 647nm, 650nm, 655nm, 656nm, 660nm, 665nm, 666nm, 670nm, 671nm, 680nm, 685nm, 688nm, 689nm, 690nm, 698nm, 705nm, 721nm, 730nm, 750nm, 760nm，770nm |
| 850nm-Band | 850nm-Band | 770nm, 780nm,785nm, 786nm, 790nm, 793nm, 795nm, 800nm, 808nm, 810nm, 825nm, 830nm, 835nm, 845nm, 850nm, 852nm, 860nm, 879nm, 880nm, 885nm, 905nm, 914nm, 915nm, 930nm, 935nm, 938nm, 940nm, 946nm, 960nm, 965nm, 975nm, 976nm, 980nm,1030nm, 1035nm, 1040nm, 1047nm, 1053nm, 1055nm, 1060nm, 1064nm, 1080nm, 1085nm, 1105nm, 1112nm, 1120nm, 1122nm, 1177nm, 1208nm |
| O-Band | Orignal Band | 1260nm,1268nm, 1275nm, 1300nm, 1310nm, 1313nm, 1319nm, 1320nm, 1342nm,1360nm |
| E-Band | Extended-Wavelength Band | 1360nm,1380nm,1392nm, 1410nm, 1413nm, 1444nm, 1450nm,1460nm |
| S-Band | Short-Wavelength Band | 1460,1470nm,1475nm,1480nm,1490nm,1528nm, 1530nm |
| C-Band | Conventional Band | 1530nm, 1532nm,1550nm, 1558nm, 1560nm, 1565nm |
| L-Band | Long-Wavelength Band | 1565nm,1570nm,1573nm,1590nm, 1605nm, 1610nm, 1625nm |
| U-Band | Ultra-Long-Wavelength Band | 1625nm,1645nm,1650nm,1675nm |
| 2000nm
Band |
2000nmBand | 1750nm,1800nm,1850nm,1900nm,2000nm,2050nm, 2100nm,2150nm |
Note:Other working wavelength requirements can also be customized upon request.
