Visible light 532nm 1X8 Mechanical optical switch
XH-OSW-1×8 Mechanical optical switch is a kind of light path control equipment. It can realize multi-channel fiber optic light path switching. In the optical fiber transmission system, it is used for multi-channel fiber monitoring, multi light source/detector selection, and optical fiber path protection etc. Besides, it is also used in optical fiber test system for optical fiber and related component test, outdoor cable test and multi-spot optical sensors monitoring system.
Feratures
- Low Loss and High Reliability
- Serial Interface (RS-232)
- Modularized Design
- Epoxy-free on Optical Path
Applications
- Ring Network
- Remote Monitoring in Optical Network
- Testing of FiberOptical Component
| Parameter | Parameter Values |
| Model | XH-OSW-1X8 |
|
Insertion Loss |
≤1.5dB |
| Wavelength Range | 380~900nm |
| Test Wavelength | 532nm |
| Fiber Type | 50/125um |
| Return Loss | ≥30 dB |
| Crosstalk | ≥ 70 dB |
| PDL | ≤0.05 dB |
| WDL | ≤0.25 dB |
| TDL | ≤0.25 dB |
| Repeatability | ≤0.02 dB |
| Lifetime | >107 |
| Switching Time | ≤10 ms （Adjacent channel） |
| Optic Power | ≤500 mW |
| Connector | FC、LC、SC、ST |
| Control Mode | RS232 |
| Working Power Supply | 5V/1000 mA |
| Product Sze | 135x60x35 |
| Operating Temperature | -20 ℃ to +70 ℃ |
| Storage temperature | -40 ℃ to +85 ℃ |

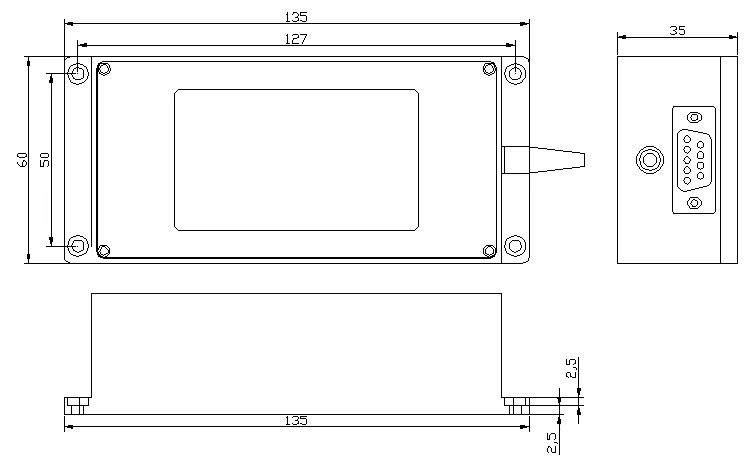

Dimension：
Ordering Information：XH-OSW-1XN–A–B–C–D–E
| Channel(N) | Wavelength Testing(A) | Fiber Type(B) | Protective casing(C) | Fiber length(D) | Connector(E) |
| N:≤16
X:Others |
424:424nm
532:532nm 850:850nm 980:980nm 1310:1310nm 1550:1550nm 1310/1550:1310nm/1550nm X:Others |
SM:SM,9/125
M5:MM,50/125 M6:MM,62.5/125 X:Others |
25::250um
90:900um X:Others |
05:0.5m
10:1.0m 15:1.5m X:Others |
OO:None
FP: FC/PC FA: FC/APC SP: SC/PC SA: SC/APC LP: LC/PC LA: LC/APC X:Others |
