OBP 2X2B optical bypass protection module
Description:
OBP-2X2B optical bypass protection module is an automatic switch for optical path failures. The module is generally used to connect multiple optical transceiver devices in series in an optical fiber optical path. Each transceiver is at a different base station. When a base station of an optical transceiver is powered off or there is no optical signal at the transmitting end of the transceiver, the optical bypass protection module will automatically identify that the base station is faulty. At this time, the optical path automatically switches to bypass the base station at the fault point, thereby achieving normal operation of other base stations.
Features:
- Low insertion loss and high reliability
- Real-time monitoring of the optical signal at the transmitter
- Automatic switching of power and light failure signals
- LED indicator light status display
Specification:
| Parameter | Parameter Value |
| Model | XH-OBP-2X2B |
| Insertion Loss（dB） | Typ：1.0 Max：1.5 |
| Wavelength Range（nm） | 1260~1650 |
| Monitoring wavelength（nm） | 1550 |
| Return Loss（dB） | ≥50 |
| Crosstalk（dB） | ≥55 |
| Optical signal automatic switching threshold（dBm） | -10 |
| Connectors | SC/PC |
| Power-off state | Switch to bypass |
| Repeatability（dB） | ≤±0.02 |
| Switching times（Times） | ≥107 |
| Switching time（ms） | ≤8 |
| Transmission power（mW） | ≤500 |
| Operating voltage（V） | 5 |
| Operating temperature（℃） | -20~+70 |
| Storage temperature（℃） | -40~+85 |
| size（mm） | (L)104×(W)120×(H)28±0.2 |

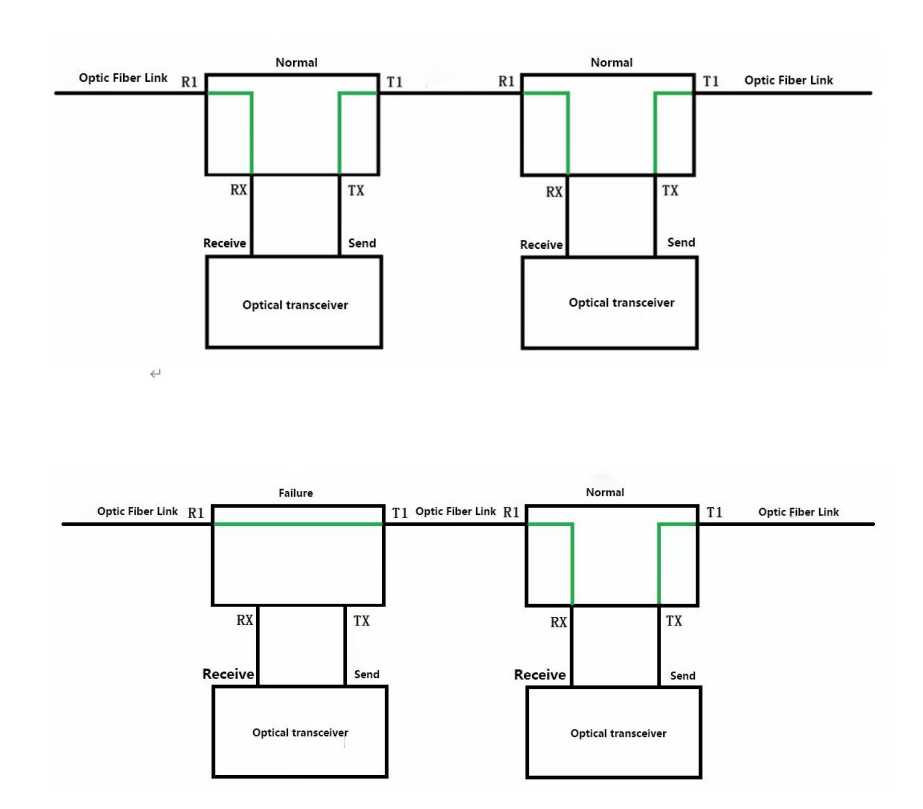

Function Diagram:
Order Information ： XH-OBP-2X2B-A-B-C-D
| Test wavelength(A) | Fiber Type(B) | Feature Selection(C) | Connectors(D) |
| 850:850nm
1310:1310nm 1550:1550nm 1625:1625nm X:other |
SM:SM,9/125
M5:MM,50/125 M6:MM,62.5/125 |
A：Power failure bypass protection
B：Light-off and power-off bypass protection |
SP: SC/PC
SA: SC/APC X: |
