Polarization Maintaining Fiber Collimator 405~685nm

Features

• Low Insertion Loss
• High Return Loss
• Highly Reliability and Stability

Applications

• Fiber Laser
• Fiber Sensor
• Fiber Components

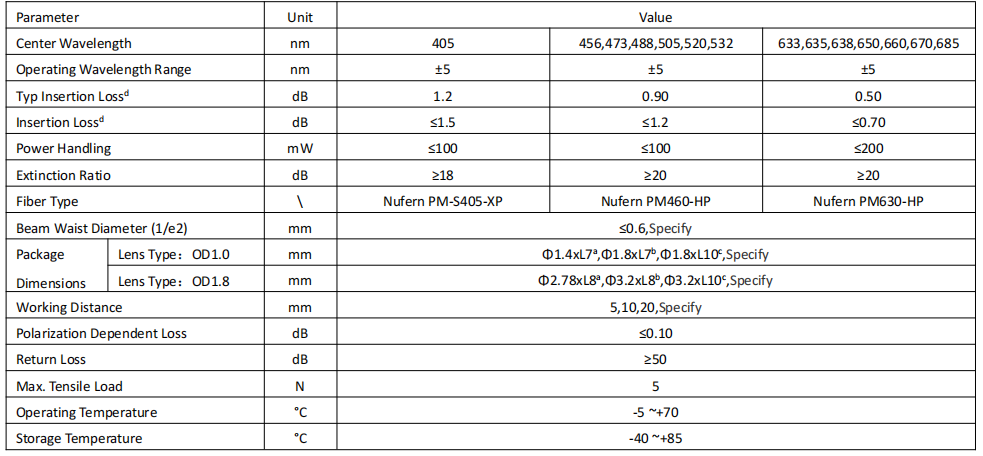

Specifications

a.Φ1.4xL7mm&Φ2.78xL8mm(Glass Tube) with 250um bare fiber; b.Φ1.8xL7mm&Φ3.2xL8mm(Gold Plated Tube:SUS304 Material) with 250um bare fiber.

c.Φ1.8xL10mm&Φ3.2xL10mm(Gold Plated Tube:SUS304 Material) with 0.9mm loose tube; d.Insertion loss is the coupling efficiency of a pair of collimators.

*Above specifications are for devices without connectors.

*For device with connector, IL is 0.5dB higher, RL is 5dB lower,and ER will be 2dB lower.

*The default connector key is Narrow key 2.0±0.02mm for FC/PC or FC/APC;The default connector key is aligned to slow axis.

*The optical power is 50mw only for connector added.

*The default Fiber Length Tolerance:0.3±0.05m,0.5±0.05m,1.0+0.05/-0.10m,1.5+0.05/-0.10m.

*Other specifications can be made on customer request.

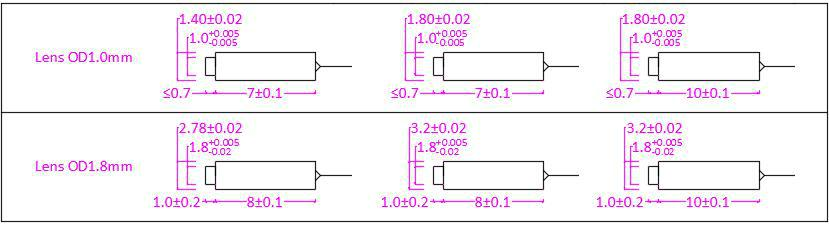

Package Dimensions
